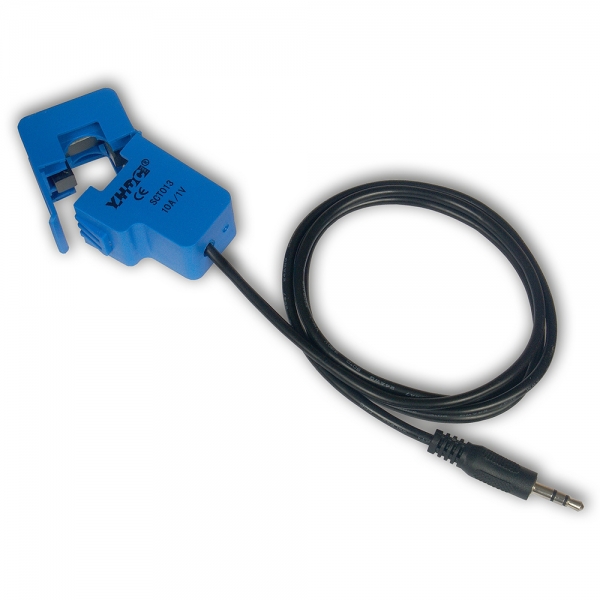

10A/1A Induction current sensor SCT-013-010 (1V)

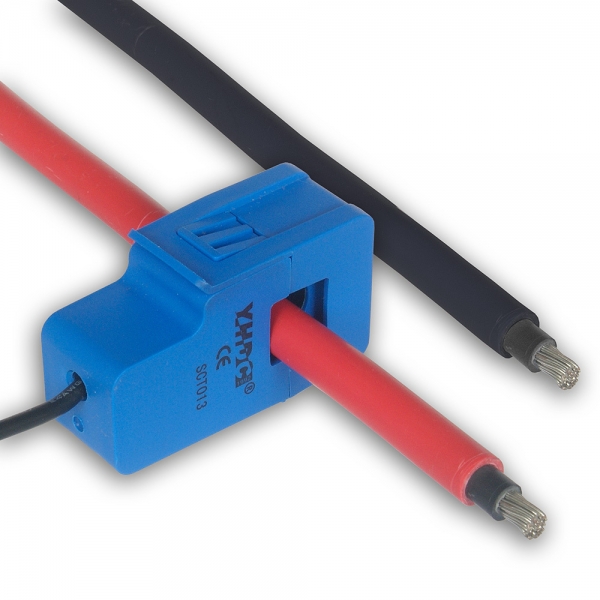

10A/1A Induction current sensor SCT-013-010 (1V) Measures the intensity of the variable current flowing in the cable without the need for it. The measurement takes place after the magnetic clamp is put on a single current cable - the sensor will not indicate anything if it is put on a current and zero cable at the same time. At the output of the sensor, there is a voltage, variables proportional to the current flowing in the cable on which the clash is assumed. The sensor can be used to measure variable current by analogue inp1-4 in LAN in LAN V3 or Arduino controller.





Technical specifications:



Current measurement range 0 ÷ 10 A AC

Maximum measurement cable diameter ø 12 mm

Built-in load resistor YES

Variable output voltage 0 ÷ 1 V AC

Cable length 1 m

Weight 50 g





Code: LANCON204

Producer: Tinycontrol

Warranty: 24 months

In stock: 0 ks

Reservation: 0 ks

Price:

7,94
RP: 0.03 €
9,80 € (with VAT)

ks

1 - 9 ks 7,94 €
10 - 19 ks 7,06 €
20 a viac ks 6,62 €
