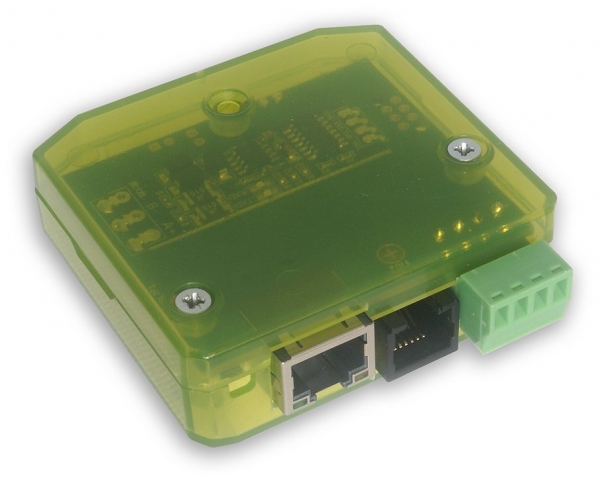

Tinycontrol Lan Controller v4 mini Modbus + I2C/1-Wire

The device features a built-in web server (like LK4) for viewing readings and configuring settings using a browser. It is available in two versions: with two I2C buses or I2C and RS485 with Modbus RTU support.

Key features:

  • I2C bus for connecting sensors through RJ12 connector a range of I2C sensors (list below) as well as DS18B20 on a 1-Wire bus,
  • RS485 bus with Modbus protocol allows you to read pre-configured devices and prepare your own settings to read any devices using the Modbus protocol,
  • 10/100Mb Ethernet communication with PoE 802.3af power,
  • Optional 5V power supply and 2.4GHz WiFi wireless transmission,
  • Management via a web interface.

Main interface functionalities accessible via the web page:

  • Viewing sensor data in the admin or user window with a customizable dashboard layout,
  • Event configuration,
  • Scheduler-based action configuration,
  • OLED display configuration,
  • MQTT, HTTP client, and SNMP protocol configuration,
  • Email notification setup,
  • Access management, firmware upgrades,
  • Setting local or network time (NTP).

Sensors supported by the I2C bus:

  • BME280 (humidity, temperature, atmospheric pressure)
  • AM2301B, AHT20, AHT25, AM2320, HTS221 (humidity, temperature)
  • SPS30, APM10 (particulate matter sensor: PM1, PM2.5, PM4, PM10)
  • SCD40, ACD10 (CO2 level sensor)
  • 0.96-inch OLED display

Technical specifications:

  • Power supply voltage: 8÷58 V
  • Power consumption: 0.5W
  • Power output for Modbus devices: 12V, 200mA
  • PoE power: YES (802.3af) mode A, passive mode B with jumper

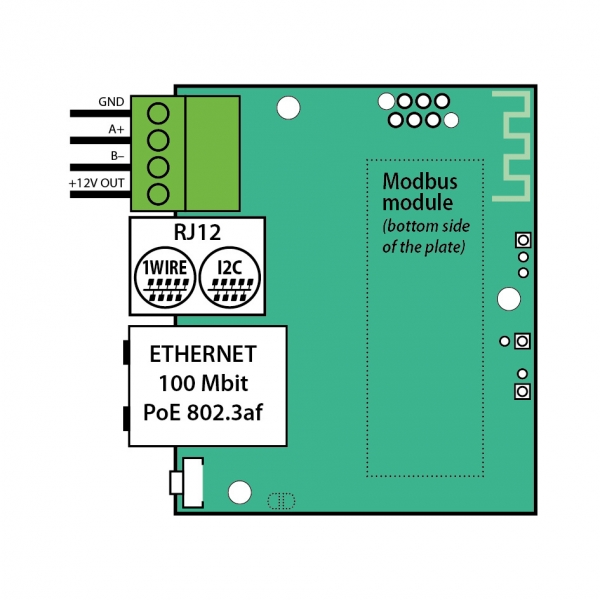

  • Interfaces: RS485 Modbus RTU, I2C/1-Wire, Ethernet 10/100 Mbit/s, Wi-Fi 802.11n
  • Operating temperature range: –20 to +85 °C
  • Dimensions: 60 x 58 x 16 mm
  • Weight: 25 g
  • DIN rail mounting: Yes (35 mm)

Code: LANCON06295

Producer: Tinycontrol

Warranty: 24 months

In stock: 0 ks

Reservation: 0 ks

Price:

43,75
RP: 0.01 €
53,82 € (with VAT)

ks

1 - 4 ks 43,75 €
5 - 9 ks 42,70 €
10 a viac ks 42,00 €
Files to download
Datasheet Download - Datasheet
