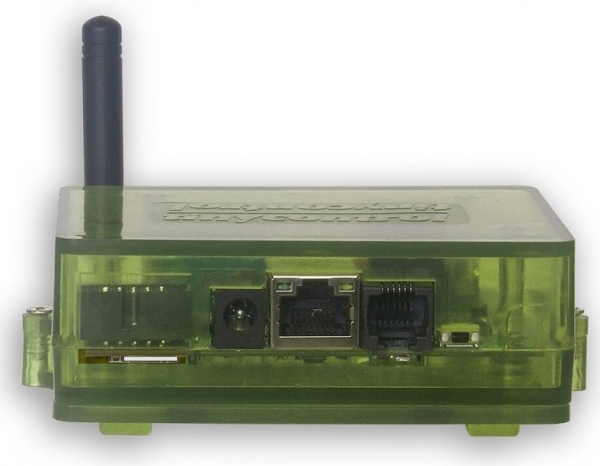

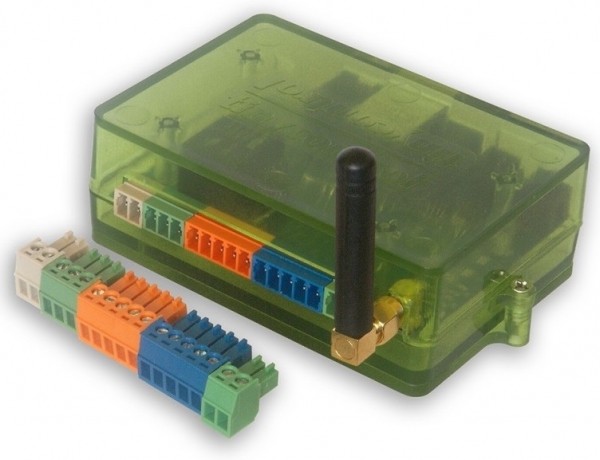

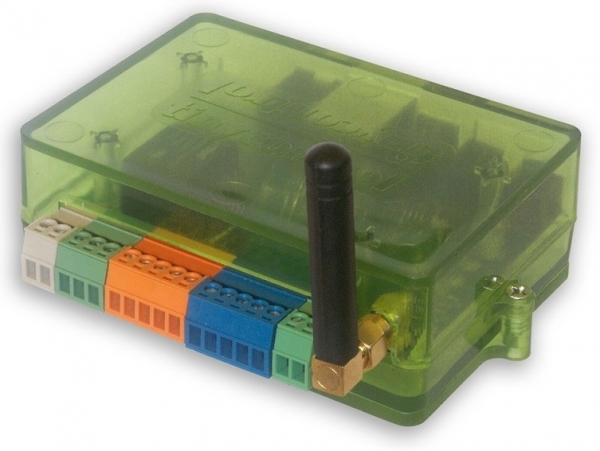

Tinycontrol Lan Controller v4 with LTE modem

The LK4 integrates our previous IoT experiences into one universal device. It represents a seamless continuation of the previous LAN Controller series, now in a more convenient form.

Dual communication interface: you can use a wired Ethernet connection, wireless Wi-Fi, or both at the same time.

LK4 can be fully configured from the website, available on the built-in web server. It is also possible to send any commands to the device via the HTTP protocol (omitting the website) or MQTT (after configuring the connection).



Communication

  • Wi-Fi in the 802.11n standard (integrated antenna) in station and AP mode
  • Ethernet 10/100Mb with PoE 802.3af power support
  • LTE modem



Hardware

  • 4 logic inputs - as a status sensor for opening monitoring, infrared motion sensors, for a button for manual switching with the option of bistable mode, as a pulse counter from the energy meter, as a time counter between subsequent input resets.
  • 2 analog inputs with switchable range (measurement up to 3.3V or 58V) - for measuring voltages, DC current, AC current (additional sensors), operating pressure sensors, thermocouples, distance sensors, photoresistors for lighting measurement and many others.
  • 1 analog input with switchable range (measurement up to 5V or 58V) - for measuring voltages, DC current, AC current (additional sensors), operating pressure sensors, thermocouples, distance sensors, photoresistors for lighting measurement and many others.
  • Measurement of supply voltage up to 58V
  • Digital input in 1-Wire standard - measurement of up to 8 DS18B20 temperature probes.
  • Digital input in the I2C standard (together with 1-Wire on the RJ12 connector) - for connecting various devices, e.g. temperature and humidity sensors, air quality (PM) sensors, CO2 measurement sensors, OLED display with the ability to configure the displayed text and others. See the list of supported sensors below.
  • Serial bus (UART) - for connecting the devices and sensors listed below.
  • RS485 bus to support devices and sensors with the Modbus RTU protocol.
  • 1 relay (NO, C, NC) 10A/250V.
  • 1 transistor output - supply voltage at the output, to control loads with a current consumption of up to 0.6A.
  • 4 outputs for switching relays, transistors in OC standard.
  • 3 PWM outputs 1Hz to 1MHz.
  • Measurement of temperature and humidity on board.

Code: LANCON302

Producer: Tinycontrol

Warranty: 24 months

In stock: 0 ks

Reservation: 0 ks

Price:

98,13
RP: 0.01 €
120,71 € (with VAT)

ks

1 - 4 ks 98,13 €
5 - 9 ks 95,77 €
10 a viac ks 94,20 €
