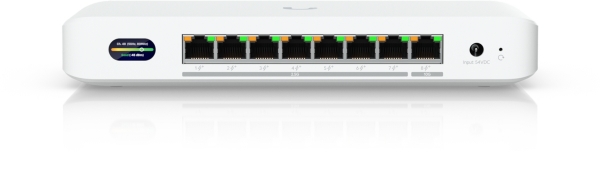

Ubiquiti UDB-Switch, UniFi 2.5G PoE switch with Wi-Fi 7 bridge

Ubiquiti Device Bridge Switch is a 2.5Gbit UniFi PoE switch with support for wireless Wi-Fi 7 uplink, (1) 10Gbit PoE+ port, (7) 2.5Gbit PoE+ ports and a PoE budget of up to 185W*. The maximum power consumption of the device is 25W (without PoE load).



Key features

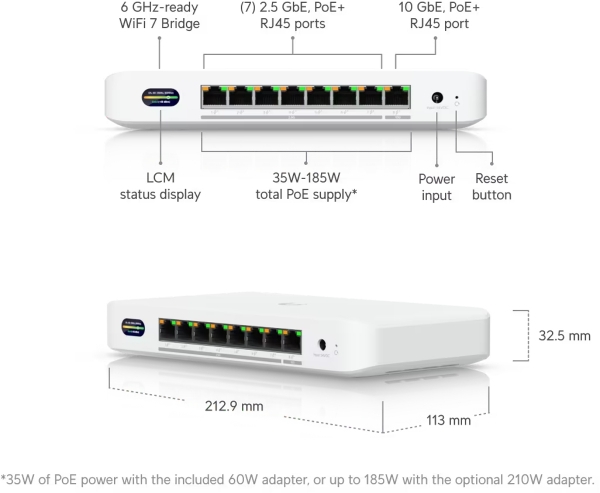

  • (1) 10Gbit PoE+ port and (7) 2.5Gbit PoE+ ports
  • 802.3af/at PoE+ with up to 30W/port and a total budget of 185W *when using a 210W power adapter (35W budget with the included 60W adapter)
  • STR MLO enables simultaneous, aggregated use of the 5GHz and 6GHz bands, providing full-duplex connectivity and significantly higher throughput
  • Dual-band Wi-Fi 7 (802.11be) bridge with STR MLO support and total throughput of up to 10.1Gbps (6Ghz + 5Ghz)
  • UniFi Wi-Fi Auto-Link for automatic connection to UniFi APs

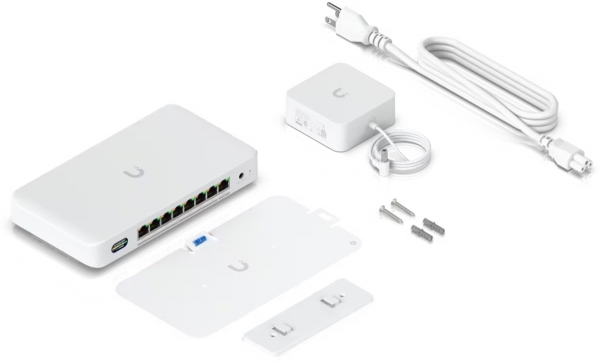

Package contents

  • Device
  • Power adapter 54V/1.1A
  • Wall-mount kit





Technical parameters

Wireless features

Wireless frequency: 5 + 6 GHz (dual band)
WiFi standards: 802.11n, 802.11a, 802.11ac, 802.11ax, 802.11be
5GHz MIMO: 2 x 2
6GHz MIMO: 2 x 2

Connectors and Interfaces

LAN speed: (1) 100M/1G/2.5G/5G/10G + (7) 100/1000/2500Mbps
Other features: LCD display

Power

Power type: DC connector
PoE type: PoE-Out (only)
PoE-Out standards: 802.3af, 802.3at
PoE Out ports: 8
PoE budget [W]: 185
Max. power consumption [W]: 210
Power via connector/terminal: 54V DC

Physical characteristics

Design: On the wall, Desktop
Fans: No
Chassis design: Plastic
Buttons: Reset
Operating temperature [°C]: -30 up to 40
Weight [g]: 548
Width [mm]: 213
Height [mm]: 33
Depth [mm]:

Code: SWUUDB-Switch

Producer: Ubiquiti

Warranty: 24 months

In stock: 0 ks

Reservation: 0 ks

Availability 25.4.2026

Price:

239,50
RP: 0.1 €
294,71 € (with VAT)

ks

1 - 2 ks 239,50 €
3 - 5 ks 235,26 €
6 a viac ks 231,03 €
