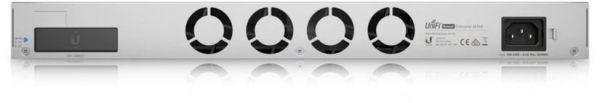

Ubiquiti USW-Enterprise-48-PoE - UniFi Switch Enterprise 48 PoE

UniFi Switch Enterprise 48 PoE is a reliable manageable 2.5-Gigabit L3 Switch with a switching capacity of 320 Gbps, (48) 2.5-Gigabit LAN ports and four SFP+ (10 Gbps) slots. All Ethernet ports support 802.3af/at PoE-Out with an output power of 30 W/port and a total PoE budget of 720 W. In addition to the standard equipment, the switch also has a 1.3" touch screen for providing information about the system, temperature, port statistics, PoE power supply and much more. The switch can be powered via standard 230 V but also via UniFi SmartPower RPS, which rather backs up power in the event of an internal power failure.

Key Features

  • (48) 100M/1G/2.5G ports - 802.3af/at PoE+ support (30W/port)
  • (4) 1/10G SFP+ ports
  • 720W Total PoE capacity
  • 1.3" touch display
  • Backup power via SmartPower RPS connector
  • Supported in UniFi Controller from version 6.2.26

Management via UniFi Controller

USW-Enterprise-48-PoE does not have web management but is managed centrally by UniFi Controller with support for the UniFi mobile application and offers an extensive set of advanced switching protocols and L2 functions, including operating mode (switching, mirroring or aggregation) per port. UniFi Network Controller and mobile applications allow administrators to configure and monitor virtually all graphical user interface functions from anywhere.



Technical parameters

Connectors and Interfaces

LAN speed: (48) 100M/1G/2.5G
Optical interfaces: (4) 1G/10Gbps
Other features: Touchscreen

Power

Power type: Mains power (230V), UniFi SmartPower RPS
PoE type: PoE-Out (only)
PoE-Out standards: 802.3af, 802.3at
Redundant power supply: Yes
PoE Out ports: 48
PoE budget [W]: 720
Max. power consumption [W]: 150
Power via connector/terminal: 230V AC

Physical characteristics

Design: Rackmount
Fans: Without fan
Chassis design: Metal
Operating temperature [°C]: -5 up to 40
Width [mm]: 442
Height [mm]: 44
Depth [mm]: 400

General

Switchning capacity [Gbps]: 320
MAC address table: 16000
Jumbo frame [Bytes]: 9000
Packet forwarding rate [Mpps]: 238,1

Software

Management: UniFi controller
Features: VLAN, DHCP snooping
Default IP address: 192.168.1.20, Dynamic from DHCP
Default login and password: ubnt / ubnt

Code: SWUUSW-Enterprise-48-PoE

Producer: Ubiquiti

Warranty: 24 months

In stock: 0 ks

Reservation: 0 ks

Price:

1 348,91
RP: 0.24 €
1 618,98 € (with VAT)

ks

1 - 2 ks 1 348,91 €
3 - 5 ks 1 325,04 €
6 a viac ks 1 301,17 €
Files to download
Datasheet Download - Datasheet
