Ubiquiti UDW - UniFi Dream Wall

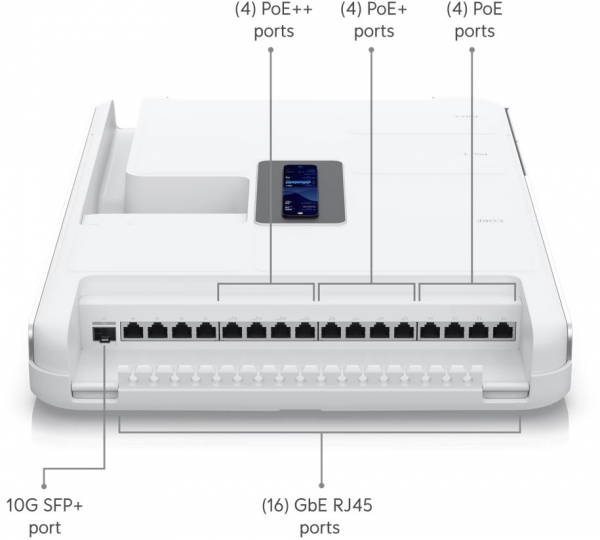

Dream Wall is another in the range of UniFi All-in-one devices. It contains a gateway with a firewall, Wi-Fi 6 access point, NVR and a switch with PoE function. The unit provides a wide range of network connectivity options. It offers the option of connecting via a 10Gbps SFP+ port or a 2.5Gbps Ethernet port. For connecting other devices in the LAN, it offers a 10Gbps SFP+ port together with 17 Ethernet 1Gbps ports, of which 12 have PoE functionality (4x POE++, 4x POE+ and 4x POE). From the factory, the device is equipped with one hot-swap source with a power of 550W, and a second position is available for redundancy. The maximum consumption of the device is 532W including connected powered devices.

The radio part supports the latest WiFi 6 (802.11ax) standard, is backward compatible with older standards and has MIMO 2x2 (2.4 Ghz) and 4x4 (5 GHz) with a maximum modulation speed 300 + 2400 Mbps.

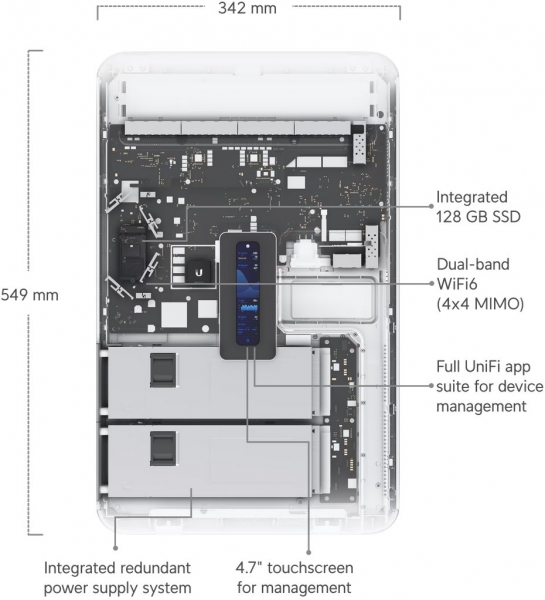

All important information about the device and the network can be accessed immediately thanks to the integrated display with a diagonal of 4.7". The pre-installed 512GB microSD card is used for storing camera recordings, and the device also has own SSD disk with a capacity of 128GB.

Supported UniFi services

  • UniFi Network Controller
  • UniFi Protect
  • UniFi Access
  • UniFi Talk
  • UniFi Connect

Advantages of the UniFi solution

  • Zero Handoff Roaming - uninterrupted transition between individual APs
  • Wireless uplink (suitable where it is impossible to get a data cable)
  • Up to 4 SSIDs
  • Detailed traffic statistics
  • Guest network
  • Load balance - maintaining an even load / switching clients
  • Speed limiting for each SSID

Package contents

  • Device with pre-installed 512GB microSD card
  • Screws and dowels
  • Drilling template
  • Wall mount
  • Power cord



Technical parameters

Wireless features

Wireless frequency: 2.4 + 5 GHz (dual band)
WiFi standards: 802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
Transmission speed - 5GHz [Mb/s]: 2402
Transmission speed - 2.4GHz [Mb/s]: 300
Tx power 2.4GHz [dBm]: 23
Tx power 5GHz [dBm]: 26
Security: WEP, WPA, WPA2, WPA3
2.4GHz MIMO: 2 x 2
5GHz MIMO: 4 x 4
Type of antenna: Built-in
Roaming: Yes
Antenna gain [dBi]: 6

Connectors and Interfaces

WAN speed: (1) 100/1000/2500Mbps
Slot for Memory Card: microSD - up to 512GB
LAN speed: (17) 10/100/1000Mbps
Gigabit LAN: Yes
Optical interfaces: (2) 10Gbps
Other features: Touchscreen, Bluetooth

Power

Power type: Mains power (230V)
PoE type: PoE-Out (only)
PoE-Out standards: 802.3af, 802.3at, 802.3at - ultra PoE (60W)
Redundant power supply: Yes
PoE Out ports: 12
PoE budget [W]: 422
Max. power consumption [W]: 532
Power via connector/terminal: 230V AC

Physical characteristics

Design: On the wall
Purpose: Indoor
Buttons: Reset
Operating temperature [°C]: -10 up to 40
Weight [g]: 8600
Width [mm]: 342
Height [mm]: 549
Depth [mm]: 62

Hardware

CPU: ARM Cortex-A57
CPU frequency [MHz]: 1700
CPU cores: 4
RAM [MB]: 4096

Software

Pre-installed controller: UniFi Protect, UniFi controller
Operating mode: AP Router
Management: UniFi controller
Default IP address: 192.168.1.1
Default login and password: Is set by the user at the first startup

Code: SWUUDW

Producer: Ubiquiti

Warranty: 24 months

In stock: 2 ks

Reservation: 0 ks

Price:

926,52
RP: 0.1 €
1 111,94 € (with VAT)

ks

1 - 2 ks 926,52 €
3 - 5 ks 910,12 €
6 a viac ks 893,72 €
Files to download
Datasheet Download - Datasheet
