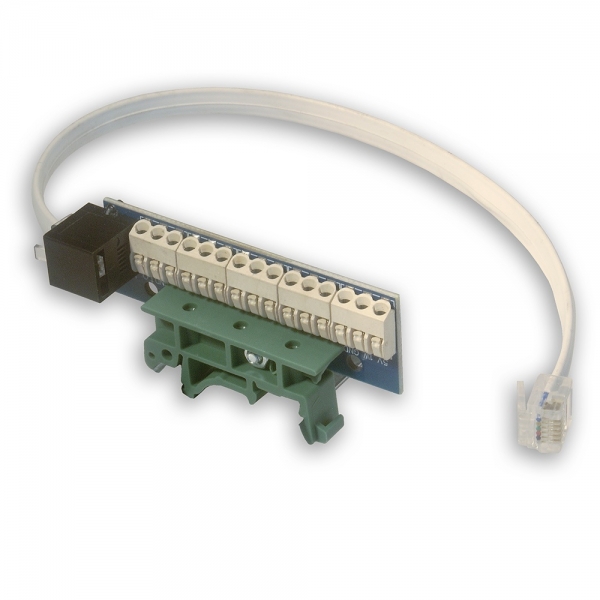

TinyControl tBsW, 5-port splitter for DS18B20 sensors, DIN rail mount

1-Wire bus splitter designed for connecting up to 5 DS18B20 temperature sensors to all versions of LK devices.
Spring-clamp version for sensors without a connector.
The splitter outputs the following signals from the RJ12 connector on the LK: 5V power, 1-Wire, and GND.

The terminals feature a mechanism for easily releasing the cable or connecting a flexible multi-conductor cable (stranded wire).
Solid wire or tinned stranded wire is recommended.





Specifications



Number of ports 5 × 3-input spring terminal
1 × RJ12 for connecting LK
Output signals 5 V, 1-Wire, GND
Supported wire size 0.2 - 0.75 mm2

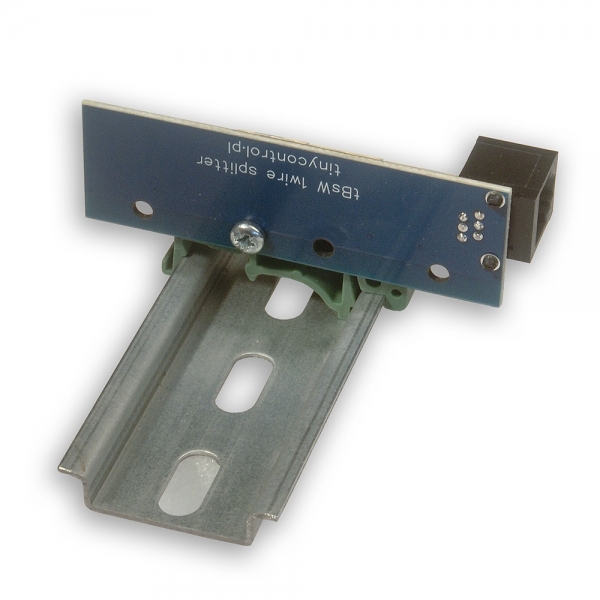

DIN rail mounting Yes (35 mm)





Code: LANCONAKC054

Producer: Tinycontrol

Warranty: 24 months

In stock: 0 ks

Reservation: 0 ks

Price:

7,20
RP: 0 €
8,86 € (with VAT)

ks

1 - 9 ks 7,20 €
10 - 29 ks 7,02 €
30 a viac ks 6,84 €
