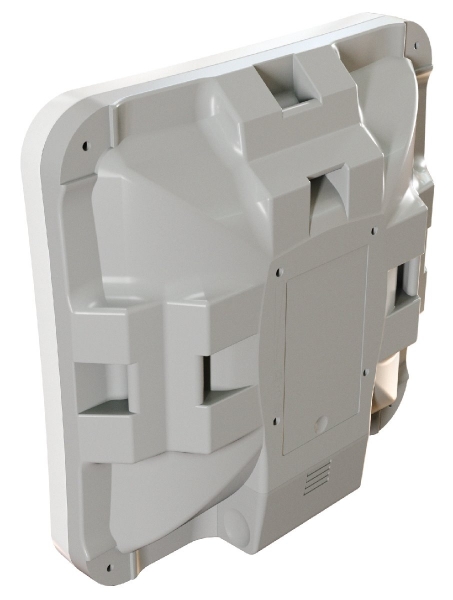

MikroTik SXTsq-5axD, Wi-Fi 6 outdoor CPE, RouterOS L4

The new SXTsq 5 ax — MikroTik’s first outdoor CPE device with Wi-Fi 6 support — combines cutting-edge wireless technology with the proven and compact SXTsq design. Despite the upgrade to Wi-Fi 6 and a modern dual-core processor based on the ARM architecture, this unit retains the same price level as the previous Wi-Fi 5 model — making it one of the most cost-effective rugged CPE devices on the market. The housing is built to withstand all weather conditions and offers three different mounting options on the back, including support for horizontal rail mounting. Thanks to the RouterOS L4 license, the unit can also be configured as an access point.



Technical parameters

Wireless features

Tx power [dBm]: 25
Wireless frequency: 5 GHz
WiFi standards: 802.11ax, 802.11ac, 802.11n, 802.11a
Transmission speed - 5GHz [Mb/s]: 1201
Tx power 5GHz [dBm]: 24
Elevation beam width (-6dB) [°]: 23
Azimuth beam width (-6dB) [°]: 23
5GHz MIMO: 2 x 2
Type of antenna: Built-in
Antenna gain [dBi]: 16

Connectors and Interfaces

LAN speed: (1) 10/100/1000Mbps
Gigabit LAN: Yes

Power

Power over Ethernet: 12 .. 28V DC
Power type: PoE
PoE type: PoE-In (only)
Max. power consumption [W]: 6

Physical characteristics

Protection class: IP55
Design: Outdoor
Purpose: Outdoor
Buttons: Reset
Operating temperature [°C]: -40 up to 70
Width [mm]: 129
Height [mm]: 129
Depth [mm]: 34

Hardware

CPU: Dual-Core IPQ-5010 800 MHz
CPU frequency [MHz]: 800
CPU cores: 2
Internal storage [MB]: 128
RAM [MB]: 256

Code: WLMSXTsq-5axD

Producer: Mikrotik

Warranty: 24 months

In stock: 0 ks

Reservation: 0 ks

Price:

47,94
RP: 0.1 €
59,09 € (with VAT)

ks

1 - 19 ks 47,94 €
20 - 39 ks 47,08 €
40 a viac ks 46,22 €
Files to download
Datasheet Download - Datasheet
