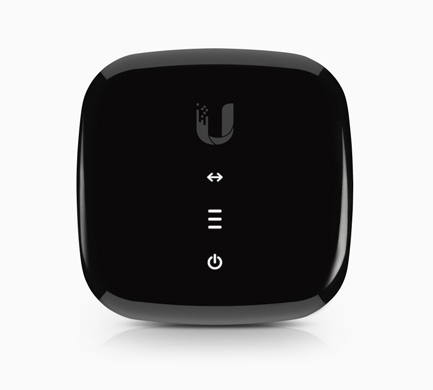

GPON Ubiquiti UF-LOCO-5

Ubiquiti UFiber LOCO has compatible with a 24V passive PoE or Micro-USB power adapter. The networking interface is GPON (SC/APC) with a RJ45 Ethernet port. UFiber LOCO operating mode is bridge or router (router mode is supported in firmware version 2.0 and higher).

Product Features


• WAN: (1) GPON Port
• LAN: (1) Gigabit Ethernet Port
• High-Performance GPON CPE
• LED diodes for easy diagnostics
• GPON Speeds: Up to 2.4 88Gbps Downstream (RX) and 1.244 Gbps Upstream (TX)
• Wavelengths: 1490nm Downstream (RX), 1310 nm Upstream (TX)
• Supports up to 20 km GPON Links
• Powerful Layer 2/3 Management Features
• Max. Power Consumption: 3.5 W
• GPON WAN Port
• RJ45 Gigabit LAN Port
• SC/APC Fiber Connector
• Mounting: Wall Mountable (indoor) (Included only in single pack).

Product Specifications


• Dimensions: 76.5 x 76.5 x 26.4 mm (3.01 x 3.01 x 1.04")
• Weight: 77 g (2.72 oz)
• Networking Interface Speeds: (1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream (1) GbE LAN, 10/100/1000 Mbps
• Management Interface: In-Band Ethernet/PON
• Normal Optical Power Range: TX (Class B+): 1.5 dBm to 5 dBm RX: -28 dBm to -8 dBm
• Power Method: Micro-USB: 5V, 1A 24V Passive PoE (Pins +4, 5; -7, 8)
• Power Supply: Micro-USB Power Adapter*: 5V, 1A
• Max. Power Consumption: 3.5 W
• Supported Voltage Range: 4.7 to 5.3V
• Processor Specs: MIPS32, 240 MHz
• Memory Information: 128 MB DDR3
• Buttons: (1) Reset
• Operating Temperature: -10 to 45° C (14 to 113° F)
• Operating Humidity: 10 to 90% Noncondensing
• Certifications: CE, FCC, IC

Code: PONUF-LOCO-5

Producer: Ubiquiti

Warranty: 24 months

In stock: 0 ks

Reservation: 0 ks

Available: up to 14 days

Price:

189,32
RP: 1.6 €
229,10 € (with VAT)

ks

1 - 2 ks 189,32 €
3 - 5 ks 184,39 €
6 a viac ks 181,09 €
Files to download
Datasheet Download - Datasheet
